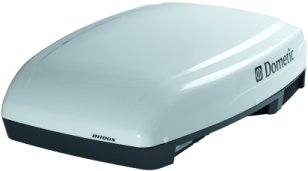

Dometic B1100S Air Conditioning Unit
RV Air Conditioners for motorhomes and caravans

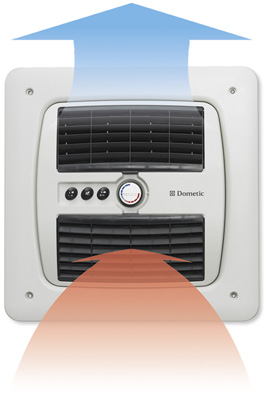

The B1100S motorhome air conditioner excels for its high performance combined with low energy consumption. That means it is even better than the well proven forerunner model, which has been chosen by leading manufacturers of recreational vehicles for years. Its ultra-flat construction reduces vibration and, what’s more, makes installation even easier. The dometic B1100S air conditioner has the following features; Flat, aerodynamic design, Perfect installation results, air conditioner adjusts to the roof thickness, Extra-flat air diffuser unit, Pleasantly quiet running, Two-speed blower with improved air circulation, Temperature and blower speed set by control panel, Additional heating function, Safe operation, tilt-insensitive up to 10 degrees, Designed for stationary operation (230 volts), Circuit protection for campsites; 3 A delay fuse.
The Dometic B1100s air con has now been discontinued
and replaced by the Dometic FreshJet 1100 air conditioning unit
To buy this range of air conditioners, accessories and DC kits head to our sister site click here
For more information please call us on 0151 334 0222
| Model | B1100S |
| Cooling Capacity | 1000 watts / 3400 Btu/h |
| Heating Capacity | 800 watts |
| Power Consumption | 500/800 watts |
| Input Voltage | 230 volts AC / 50Hz |
| Current Consumption | 2.1 / 3.5 A |
| Necessary Circuit Protection | 3 A delay fuse |
| Number of Blower Speeds | 2 |
| Thermostat Temperature Control | Yes |
| Refrigerant | R407c |

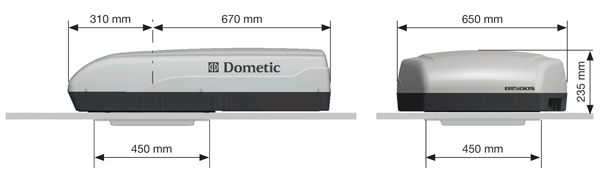

| Dimensions (WxHxD) | 650 x 235 x 980mm |
| Roof Opening | 400 x 400mm |
| Roof Thickness | 25 - 45mm / up to 75mm |
| Weight | approx 29kg |
| Test Marks | E-approved to EMC automotive directive |
| Scope of Delivery | Roof air conditioner, mounting frame, air diffuser unit, fixing materials, installation and operating instructions |
Motorhome Air Conditioning DC Kit
This table shows you which DC Kits are suitable for each air conditioning unit, the 'X' indicates which which kits are suitable.
Model |
DC Kit 1 |
DC Kit 2 |
DC Kit 3 |
Dometic CA1000 |
X |
X |
|
Dometic B1600 |
X |
X |
|
Dometic B1600 Plus |
X |
X |
|
Dometic B2200 |
X |
X |
|
Dometic CA2500 |
X |
X |
|
Dometic HB2500 |
X |
Dometic DC Kit 1 |
||
 |
Current Consumption (12v DC) |
30 to 40 A |
Recommended Generator Capacity |
≥ 75 A |
|
Recommended Total Battery Capacity |
≥ 80 Ah |
|
Continuous Output |
1000 watts |
|
Dimensions (WxHxD) |
210 x 77 x 300mm |
|
Scope of Delivery: Inverter [single-wave-like output voltage, with mains priority circuit], remote control including 5m control cable, 2 battery cables 16mm² [1.5m long], 230 volt connection cable, charging current distributor with relay. |
||
Dometic DC Kit 1 |
Item Code: DOM-9100300003 |
|
Dometic DC Kit 2 |
||
 |
Current Consumption (12v DC) |
90 A max |
Recommended Generator Capacity |
≥ 90 A |
|
Recommended Total Battery Capacity |
≥ 100 Ah |
|
Continuous Output |
1600 watts |
|
Dimensions (WxHxD) |
210 x 77 x 410mm |
|
Scope of Delivery:Inverter [single-wave-like output voltage, with mains priority circuit], remote control including 5m control cable, 2 battery cables 25mm² [1.5m long], 230 volt connection cable, charging current distributor with relay. |
||
Dometic DC Kit 2 |
Item Code: DOM-9100300001 |
|
Dometic DC Kit 3 |
||
 |
Current Consumption (12v DC) |
74 A max |
Recommended Generator Capacity |
≥ 90 A |
|
Recommended Total Battery Capacity |
≥ 100 Ah |
|
Continuous Output |
1500 watts |
|
Dimensions (WxHxD) Inverter Mains Priority Circuit |
191 x 88 x 415mm 190 x 80 x 80mm |
|
Scope of Delivery:Inverter [single-wave-like output voltage, with mains priority circuit], remote control including 5m control cable, 2 battery cables 25mm² [1.5m long], 230 volt connection cable, charging current distributor with relay. |
||
Dometic DC Kit 3 |
Item Code: DOM-9100300002 |
|
